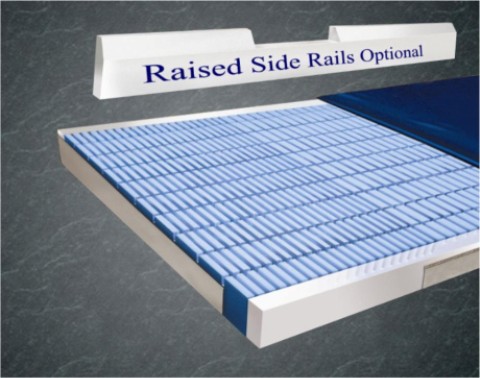

HBR's Multi-Zone Relief™ 520 is a superior pressure relieving mattress system designed for facilities with limited budgets.  The model 520 is a three (3) zoned mattress composed of 670 individual cells that are independent from one another.  This design allows the mattress to conform to the patient's contour and customize support as the patient moves.  Superior pressure reduction is achieved by varying cell depth throughout the mattress zones.  Specific attention is given to the vulnerable heel section to minimize interface pressure and results an excellent pressure relieving sleep system not found in typical 'egg crate' foam mattresses.

Feature and Benefits:

TOP COVER: UNITEK™ II NYLON features non-shear, low moisture vapor transmission (LMVT), fluid resistant, and anti-microbial / anti-bacterial properties.


MAIN BODY SECTION consists of channel cut high density polyurethane foam.  670 individual cells result in a superior pressure reduction and anti-shear sleeping surface.

SOLID FOAM SIDE RAILS provide patient security and support during bed transfer.

OPTIONAL RAISED SOLID FOAM SIDE RAILS also provide patient security and support during bed transfer with the additional benefit of offering a gentle reminder when the patient nears the edge of the bed.  The lower areas at the lap section provides the patient with a pleasant entrance and exit point accessible from either side of the bed.

CONTAMINATION BARRIER FLAP reduces the possibility of contamination reaching the inner core.

BOTTOM COVER is a triple laminated vinyl that is fluid resistant, anti-microbial / anti-bacterial and fire-retardant.

FIRE-RETARDANT construction conforms to California Technical Bulletin #117.  An optional Fire Stop Barrier System is available and conforms to California Technical Bulletin #129 and the NFPA life Safety Code #101.


AVAILABLE SIZES:     36" x 76" x 5.75"

                                36" x 80" x 5.75"

                                36" x 84" x 5.75"

WARRANTY: 3-year non-prorated

Interface pressure readings performed by Independent certified testing company and are available upon request.
